The Dynamic Solar Magnetic Field with Introduction

  • Released Monday, April 30, 2018
View full credits

This narrated visualization transitions from a view of the Sun in visible light, to a view in ultraviolet light showing the plasma flowing along solar magnetic structures, to the underlying magnetic field of the solar photosphere, to a model construction of magnetic fieldlines above the photosphere.
This video is also available on our YouTube channel.

While the sun is well known as the overwhelming source of visible light in our solar system, a substantial part of its influence is driven by some aspects less visible to human perception - the magnetic field.

In this visualization we start a view of the Sun in visible light (similiar to what you would see from the ground on Earth), to a view in extreme ultraviolet wavelengths (only visible to space-based instruments) which shows hot plasma streaming along magnetic field lines, to a magnetogram (derived from the visible light data) and finally to a three-dimensional magnetic field model built from that data. The sphere represents the solar photosphere, with neutral grey indicating a magnetic field of near zero intensity, black representing a magnetic field pointing INTO the sun (south or negative polarity) and white representing a magnetic field pointing OUT of the sun (north or positive polarity). We see that these magnetic regions often appear in nearby pairs of opposite polarities - which in visible light would often correspond to a pair of sunspots.

Most of the solar photosphere has a magnetic field intensity of a few gauss while the active regions which form around sunspots can have magnetic fields of a few thousand gauss. Modern space-based instruments such as HMI (Helioseismic and Magnetic Imager) on the Solar Dynamics Observatory (SDO) enable us to measure the intensity of the magnetic field at the visible surface of the sun.

Using this measured magnetic field on the photosphere, combined with mathematical models based on Maxwell's equations and plasma physics, we can construct how the magnetic field would look above the photosphere. Here, the white magnetic field lines are considered 'closed'. They move up, and then return to the solar surface. We often see these closed lines associated with pairs of active regions on the sun. The green and violet lines represent field lines that are considered 'open'. Green represents positive magnetic polarity, and violet represents negative polarity. These field lines do not connect back to the sun but with more distant magnetic fields in space.

Here we build one of the simpler magnetic field models, called Potential Field Source Surface or PFSS, to construct how the magnetic 'lines of force' might look above the sun. The PFSS model represents the simplest and most steady magnetic field possible, though here we sample the field each day to illustrate the slow changes of the magnetic structure over time, in this case between January 1, 2011 through December 30, 2014.

This camera view is fixed in Carrington Heliographic coordinates, so it moves with an 'average' solar rotation value with a period of 25.38 days. The solar equator moves faster than this, and high latitudes move slower. This makes active regions near the equator appear to move to the right (on average) while higher latitude regions move leftward.

Some might note that this model looks rather different than an earlier version The Sun's Magnetic Field. In the earlier version, we were interested in the magnetic field structure significantly above the solar surface and so the model is examined favoring the field lines that reach high above the photosphere. In the model presented here, we are more interested in the magnetic field around the solar active regions, so we examine the model much closer to the photosphere, which favors magnetic field lines clustered around the active regions.

An artifact in this visualization is a 'jump' of change that sweeps through the magnetic loops about once per month based on the timestamp in the lower left corner. This is an artifact of the fact that these types of magnetic field measurements can only be done on one side of the sun at a time. As the sun rotates, the features disappear over the limb and new ones appear on the opposite limb. While on the far-side of the sun from Earth, we have no direct measurements. However, we do have models that can simulate the slow changes in the field while not visible from Earth (described in the science paper Photospheric and heliospheric magnetic fields by Carolus J. Schrijver and Marc L. De Rosa). The 'jump' is created at the seam where the less accurate model gets overwritten by newer data.

A view of the Sun in visible light, showing a few sunspots.

A view of the Sun in visible light, showing a few sunspots.

A view of the Sun in ultraviolet light at a wavelength of 171 Ångstroms.

A view of the Sun in ultraviolet light at a wavelength of 171 Ångstroms.

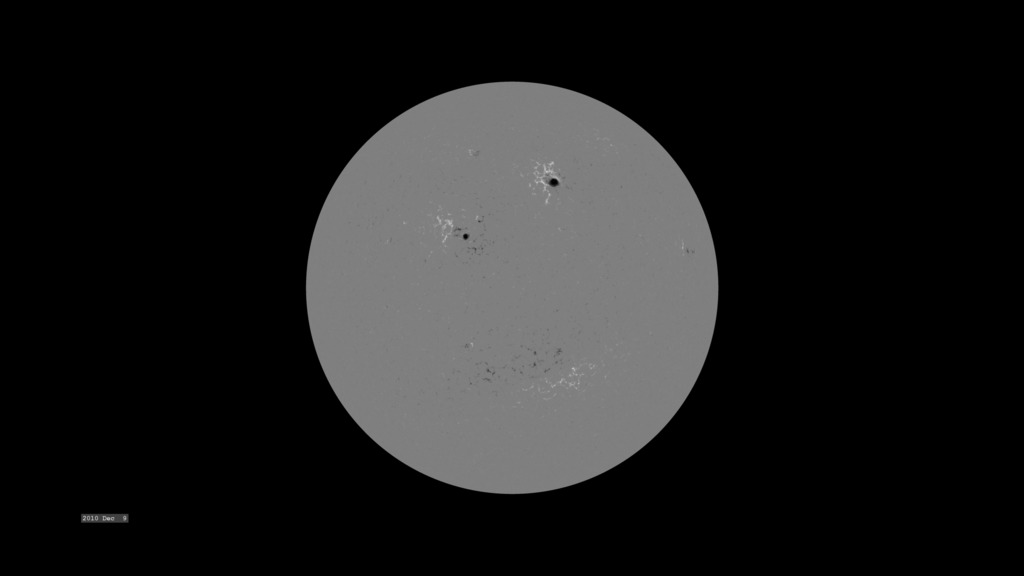

A photospheric magnetogram, showing regions of strong magnetic fields.

A photospheric magnetogram, showing regions of strong magnetic fields.

The PFSS magnetic field model, one of the possible configurations for the magnetic field near the Sun based on the photospheric magnetogram.

The PFSS magnetic field model, one of the possible configurations for the magnetic field near the Sun based on the photospheric magnetogram.
