Arctic Sea Ice Minimum 2024

  • Released Tuesday, September 24, 2024
View full credits

Satellite-based passive microwave images of the sea ice have provided a reliable tool for continuously monitoring changes in the Arctic ice since 1979. Every summer the Arctic ice cap melts down to what scientists call its "minimum" before colder weather begins to cause ice cover to increase. An analysis of satellite data by NASA and the National Snow and Ice Data Center (NSIDC) at the University of Colorado Boulder shows that the 2024 minimum extent, which was likely reached on Sept. 11, measured 1.65 million square miles (4.28 million square kilometers). This is the 7th lowest measured sea ice extent for the arctic on record.

The Japan Aerospace Exploration Agency (JAXA) provides many water-related products derived from data acquired by the Advanced Microwave Scanning Radiometer 2 (AMSR2) instrument aboard the Global Change Observation Mission 1st-Water "SHIZUKU" (GCOM-W1) satellite. Two JAXA datasets used in this animation are the 10-km daily sea ice concentration and the 10 km daily 89 GHz Brightness Temperature.

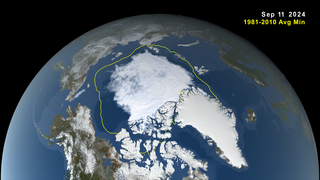

In this animation, the daily Arctic sea ice and seasonal land cover change progress through time, from the yearly maximum ice extent on March 14 2024, through its minimum on September 11 2024. Over the water, Arctic sea ice changes from day to day showing a running 3-day minimum sea ice concentration in the region where the concentration is greater than 15%. The blueish white color of the sea ice is derived from a 3-day running minimum of the AMSR2 89 GHz brightness temperature. The yellow boundary shows the minimum extent averaged over the 30-year period from 1981 to 2010. Over the terrain, monthly data from the seasonal Blue Marble Next Generation fades slowly from month to month.

Animation of Arctic sea ice maximum extent, March 14 2024, to its minimum, September 11, 2024, mobile format



Credits

Please give credit for this item to:
NASA's Scientific Visualization Studio

Release date

This page was originally published on Tuesday, September 24, 2024.
This page was last updated on Sunday, October 6, 2024 at 11:36 PM EDT.


Missions

This page is related to the following missions:

Datasets used

  • BMNG (Blue Marble: Next Generation) [Terra and Aqua: MODIS]

    ID: 508
    Sensor: MODIS

    Credit: The Blue Marble data is courtesy of Reto Stockli (NASA/GSFC).

    This dataset can be found at: http://earthobservatory.nasa.gov/Newsroom/BlueMarble/

    See all pages that use this dataset
  • 10 km Daily Sea Ice Concentration [SHIZUKU (GCOM-W1): AMSR2]

    ID: 795
    Type: Observed Data Sensor: AMSR2 Collected by: Japan Aerospace Exploration Agency

    Credit: AMSR2 data courtesy of the Japan Aerospace Exploration Agency (JAXA).

    See all pages that use this dataset
  • 10 km Daily 89 GHz Brightness Temperature [SHIZUKU (GCOM-W1): AMSR2]

    ID: 796
    Type: Observed Data Sensor: AMSR2 Collected by: Japan Aerospace Exploration Agency

    Credit: AMSR2 data courtesy of the Japan Aerospace Exploration Agency (JAXA).

    See all pages that use this dataset

Note: While we identify the data sets used on this page, we do not store any further details, nor the data sets themselves on our site.
