Hurricane Ivan Rainfall Structure on September 13, 2004

  • Released Tuesday, September 14, 2004
View full credits

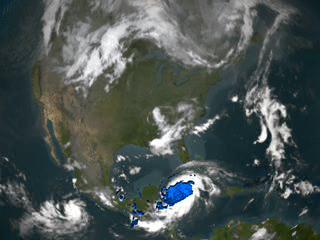

Zooms down to Hurricane Ivan on September 13, 2004. It looks underneath of the storms clouds to reveal the underlying rain structure. Blue represents areas with at least 0.25 inches of rain per hour. Green shows at least 0.5 inches of rain per hour. Yellow is at least 1.0 inches of rain and Red is at least 2.0 inches of rain per hour.

Hurricane Ivan on September 13, 2004. Blue represents areas with at least 0.25 inches of rain per hour.

Hurricane Ivan on September 13, 2004. Blue represents areas with at least 0.25 inches of rain per hour.

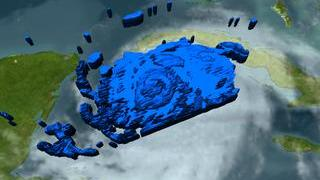

Hurricane Ivans rain structure on September 13, 2004. Blue represents areas with at least 0.25 inches of rain per hour. Green shows at least 0.5 inches of rain per hour.

Hurricane Ivans rain structure on September 13, 2004. Blue represents areas with at least 0.25 inches of rain per hour. Green shows at least 0.5 inches of rain per hour.

Hurricane Ivan on September 13, 2004. Blue represents areas with at least 0.25 inches of rain per hour. Green shows at least 0.5 inches of rain per hour. Yellow is at least 1.0 inches of rain.

Hurricane Ivan on September 13, 2004. Blue represents areas with at least 0.25 inches of rain per hour. Green shows at least 0.5 inches of rain per hour. Yellow is at least 1.0 inches of rain.

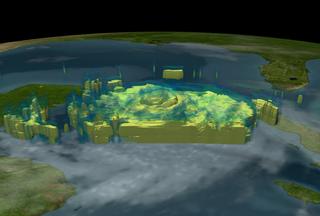

TRMMs view of Hurricane Ivan on September 13, 2004. Blue represents areas with at least 0.25 inches of rain per hour. Green shows at least 0.5 inches of rain per hour. Yellow is at least 1.0 inches of rain and Red is at least 2.0 inches of rain per hour.

TRMMs view of Hurricane Ivan on September 13, 2004. Blue represents areas with at least 0.25 inches of rain per hour. Green shows at least 0.5 inches of rain per hour. Yellow is at least 1.0 inches of rain and Red is at least 2.0 inches of rain per hour.

Credits

Please give credit for this item to:
NASA/Goddard Space Flight Center Scientific Visualization Studio

This page was originally published on Tuesday, September 14, 2004.
This page was last updated on Wednesday, May 3, 2023 at 1:56 PM EDT.
