Earth  ID: 3885

Components of the Cryosphere

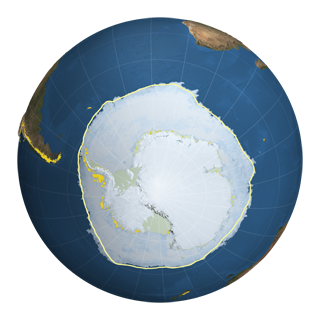

This high resolution image, designed for the Fifth Assessment Report of the Intergovernmental Panel on Climate Change, shows the extent of the regions affected by components of the cryosphere around the world. Over land, continuous permafrost is shown in a dark pink while discontinuous permafrost is shown in a lighter shade of pink. Over much of the northern hemisphere's land area, a semi-transparent white veil depicts the regions that are affected by snowfall at least one day during the perion 2000-2012. The bright green line along the southern border of this region shows the maximum snow extent while a black line across the North America, Europe and Asia shows the 50% snow extent line. Glaciers are shown as small golden dots in mountainous areas and in the far northern and southern latitudes. Over the water, ice shelves are shown around Antarctica along with sea ice surrounding the ice shelves. Sea ice is also shown at the North Pole, where the 30 year average sea ice extent is shown by a yellow outline. In addition, the ice sheets of Greenland and Antarctica are clearly visible.

Related Documentation

Comiso_22_FULL4_flat.pdf

Visualization Credits

Cindy Starr (GST): Lead Visualizer
Josefino Comiso (NASA/GSFC): Scientist
Tinjun Zhang (NSIDC Cooperative Institute for Research in Environmental Sciences): Scientist
James W. Williams (GST): Project Support
Laurence Schuler (ADNET Systems Inc.): Project Support
Ian Jones (ADNET Systems Inc.): Project Support
Please give credit for this item to:
NASA/Goddard Space Flight Center Scientific Visualization Studio

Short URL to share this page:
http://svs.gsfc.nasa.gov/3885

Data Used:
Aqua/AMSR-E/Daily L3 12.5km Tb, Sea Ice Concentration, and Snow Depth
Aqua/AMSR-E/Daily L3 6.25 km 89 GHz Brightness Temperature (Tb)
Circum-Arctic Map of Permafrost and Ground-Ice Conditions
Interactive Multisensor Snow and Ice Mapping System (IMS)/IMS Daily Northern Hemisphere Snow and Ice Analysis - 24 km Resolution
Note: While we identify the data sets used in these visualizations, we do not store any further details nor the data sets themselves on our site.
