Hurricane Ivan Rainfall Structure seen by TRMM on September 16, 2004

  • Released Monday, September 20, 2004
View full credits

NASA's TRMM spacecraft is used by meteorologists to understand Hurricane Ivan. TRMM snapped this view of Hurricane Ivan on September 15, 2004, just before the storm strikes land. The cloud cover is taken by TRMM's Visible and Infrared Scanner (VIRS). The rain structure is taken by TRMM's Tropical Microwave Imager (TMI). It looks underneath of the storm's clouds to reveal the underlying rain structure.
Blue represents areas with at least 0.25 inches of rain per hour. Green shows at least 0.5 inches of rain per hour. Yellow is at least 1.0 inches of rain and red is at least 2.0 inches of rain per hour.

TRMM provides this view of Hurricane Ivan on September 16, 2004, as its eye makes landfall. TRMM lets us see through the clouds. Blue represents areas with at least 0.25 inches of rain per hour. Green shows at least 0.5 inches of rain per hour. Yellow is at least 1.0 inches of rain and red is at least 2.0 inches of rain per hour.

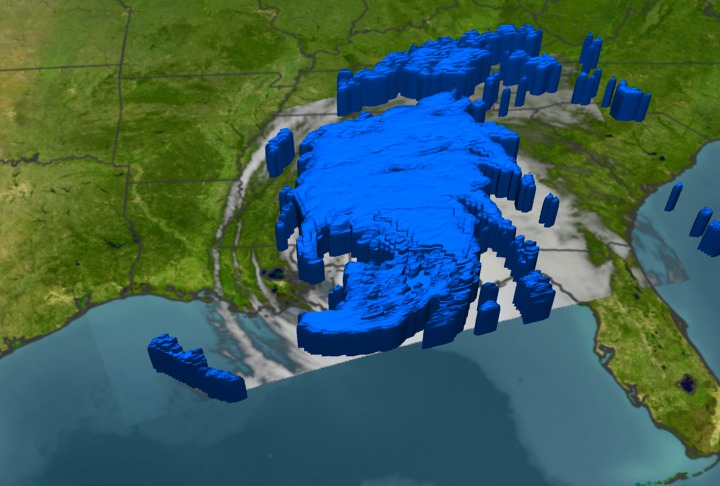

TRMM provides this view of Hurricane Ivan on September 16, 2004, as its eye makes landfall. TRMM lets us see through the clouds. Blue represents areas with at least 0.25 inches of rain per hour.

TRMM provides this view of Hurricane Ivan on September 16, 2004, as its eye makes landfall. TRMM lets us see through the clouds. Blue represents areas with at least 0.25 inches of rain per hour.

TRMM provides this view of Hurricane Ivan on September 16, 2004, as its eye makes landfall. TRMM lets us see through the clouds. Blue represents areas with at least 0.25 inches of rain per hour. Green shows at least 0.5 inches of rain per hour.

TRMM provides this view of Hurricane Ivan on September 16, 2004, as its eye makes landfall. TRMM lets us see through the clouds. Blue represents areas with at least 0.25 inches of rain per hour. Green shows at least 0.5 inches of rain per hour.

TRMM provides this view of Hurricane Ivan on September 16, 2004, as its eye makes landfall. TRMM lets us see through the clouds. Blue represents areas with at least 0.25 inches of rain per hour. Green shows at least 0.5 inches of rain per hour. Yellow is at least 1.0 inches of rain.

TRMM provides this view of Hurricane Ivan on September 16, 2004, as its eye makes landfall. TRMM lets us see through the clouds. Blue represents areas with at least 0.25 inches of rain per hour. Green shows at least 0.5 inches of rain per hour. Yellow is at least 1.0 inches of rain.

TRMM provides this view of Hurricane Ivan on September 16, 2004, as its eye makes landfall. TRMM lets us see through the clouds. Blue represents areas with at least 0.25 inches of rain per hour. Green shows at least 0.5 inches of rain per hour. Yellow is at least 1.0 inches of rain and Red is at least 2.0 inches of rain per hour.

TRMM provides this view of Hurricane Ivan on September 16, 2004, as its eye makes landfall. TRMM lets us see through the clouds. Blue represents areas with at least 0.25 inches of rain per hour. Green shows at least 0.5 inches of rain per hour. Yellow is at least 1.0 inches of rain and Red is at least 2.0 inches of rain per hour.
