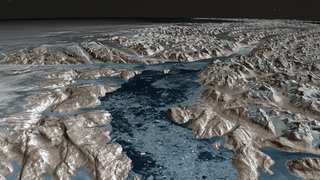

Greenland's Glaciers as seen by RadarSat

This animation is based on 30-meter topography data for Greenland along with an ocean and an ice sheet mask provided by the Greenland Ice Mapping Project (GIMP) at Ohio State. Each of these datasets consists of a 6 x 6 array of 124 megapixel tiles.

The surface texture is derived from seven sets of 20-meter Radarsat reflectance data from the Canadian Space Agency, mosaicked at the University of Washington's Applied Physics Lab and accurately registered to the topography data. Each of six tile sets represents data for one year between 2000 and 2013, while the final one is a composite of the six years that has most areas of missing data resolved. Each of these tile sets consist of a 5 x 5 array of 421 megapixel tiles.

The false color of the surface is derived as follows. Three different color scales are applied to the floating point Radarsat reflectance data based on their relationship within the GIMP masks. Areas within the ice sheet mask are mapped to a color ramp from white (high) to grey (low). Areas within the land region of the ocean mask but not in the ice sheet mask are similarly mapped to a color ramp of light to dark tan. The area indicating ocean is mapped to blue.
