Flight through the Coronal Loops

  • Released Thursday, October 27, 2005
  • Updated Wednesday, January 14, 2015 at 12:29PM
  • ID: 3286

Transition from a 2-D solar image to a 3-D solar model and take a flight around the Sun, close to the solar surface.

Here we illustrate the potential benefits of the 3-D views of the Sun which STEREO will provide. Starting with a simple 2-D EIT ultraviolet image from SOHO, we transition to a 3-D model and move through the coronal loops which are constructed along solar magnetic fields. The solar model is constructed from magnetogram data collected by SOHO/MDI. Because we do not see the full solar surface at any one time, the magnetograms collected over the course of a solar rotation are processed through a time-evolving solar surface model to provide a snapshot of the surface at a fixed time. The resulting magnetogram is then processed through the Potential Field Source Surface (PFSS) model. Coronal loops are visible at the higher temperatures of ultraviolet light, in this case, 195 angstroms, the filter wavelength of SOHO/EIT. For this version, we color the coronal loops green for ready comparison to the EIT 195 angstrom imagery using the EIT 'standard color table'.
No description available.

A 2-D view of the Sun as seen from SOHO/EIT.

No description available.

A view of the coronal loops generated by the PFSS model for this time frame.

No description available.

Push-in to the solar surface, focused on a small dipolar active region, AR 9731.

No description available.

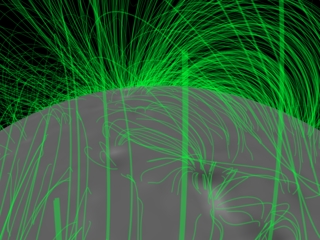

Rotating our view to the solar surface, we begin our flight through the upper regions of the solar atmosphere.

No description available.

We continue the flight throuh the loops, moving along the same heliographic latitude.

No description available.

We pass over another group of active regions.

No description available.

Finally ending our tour back at AR 9731.



Credits

Please give credit for this item to:
NASA/Goddard Space Flight Center Scientific Visualization Studio


Missions

This visualization is related to the following missions:

Series

This visualization can be found in the following series:

Datasets used in this visualization

SOHO SOHO/EIT 195 (A.K.A. 195 Filter) (Collected with the Extreme-UV Imaging Telescope (EIT) sensor)
NASA and ESA
PFSS (A.K.A. Magnetic Field Lines) (Collected with the PFSS sensor)
Model | NASA and ESA

This model generated from SOHO/MDI magnetograms through the SolarSoft package.

Dataset can be found at: http://sohowww.nascom.nasa.gov/solarsoft/

See more visualizations using this data set
SOHO Magnetogram (Collected with the Michelson Doppler Interferometer (MDI) sensor)
NASA and ESA

Note: While we identify the data sets used in these visualizations, we do not store any further details nor the data sets themselves on our site.
