Incoming Solar Flux Compared to Clouds (WMS)

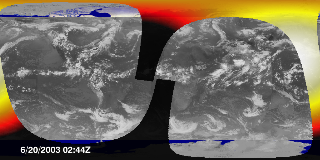

The Earth's climate is determined by energy transfer from the sun to the Earth's land, oceans, and atmosphere. As the Earth rotates, the sun lights up only part of the Earth at a time, and some of that incoming solar energy is reflected and some is absorbed, depending on type of area it lights. The amount of reflection and absorption is critical to the climate. An instrument named CERES orbits the Earth every 99 minutes and measures the reflected solar energy. This animation shows the incoming solar radiation within view of CERES during 29 orbits on June 20 and 21 of 2003. Because this is incoming solar flux, its magnitude only depends on the position of the sun, and, because the orbit is synchronized with the sun, the orbit crosses the equator in the daylight at about 1:30 PM local time on every orbit. This data is not actually measured from CERES, but is calculated to compare with the outgoing radiation that CERES does measure. Note that the infrared cloud image shown under the solar data shows high infrared as dark (land) and low infrared as light (clouds).

For More Information

http://asd-www.larc.nasa.gov/ceres/ASDceres.html


Visualization Credits

Horace Mitchell (NASA/GSFC): Lead Animator
Eric Sokolowsky (GST): Animator
Bruce A. Wielicki (NASA/LaRC): Scientist
Please give credit for this item to:
NASA/Goddard Space Flight Center Scientific Visualization Studio

Short URL to share this page:
https://svs.gsfc.nasa.gov/3178

Mission:
Solar Radiation and Climate Experiment (SORCE)

Data Used:
METEOSAT-6/MVIRI/Cloud Cover
2003/06/20-2003/06/21
GOES-12/Imager/Cloud Cover
2003/06/20-2003/06/21
GOES-10/Imager/Cloud Cover
2003/06/20-2003/06/21
GMS-5/Spin-Scan Imager/Cloud Cover
2003/06/20-2003/06/21
Aqua/CERES/Incoming Solar Radiation
2003/06/20-2003/06/21
Data from SORCE for the flux magnitude at the Earth's orbit, coupled with solar incidence angles based on CERES measurement locations and times
Meteosat-7/VISSR
2003/06/20-2003/06/21
GOES-10/Imager
2003/06/20-2003/06/21
GOES-12/Imager
2003/06/20-2003/06/21
SORCE/TIM
2003/06/20-2003/06/21
GOES-9/Imager
2003/06/20-2003/06/21
