Ozonewatch 2017

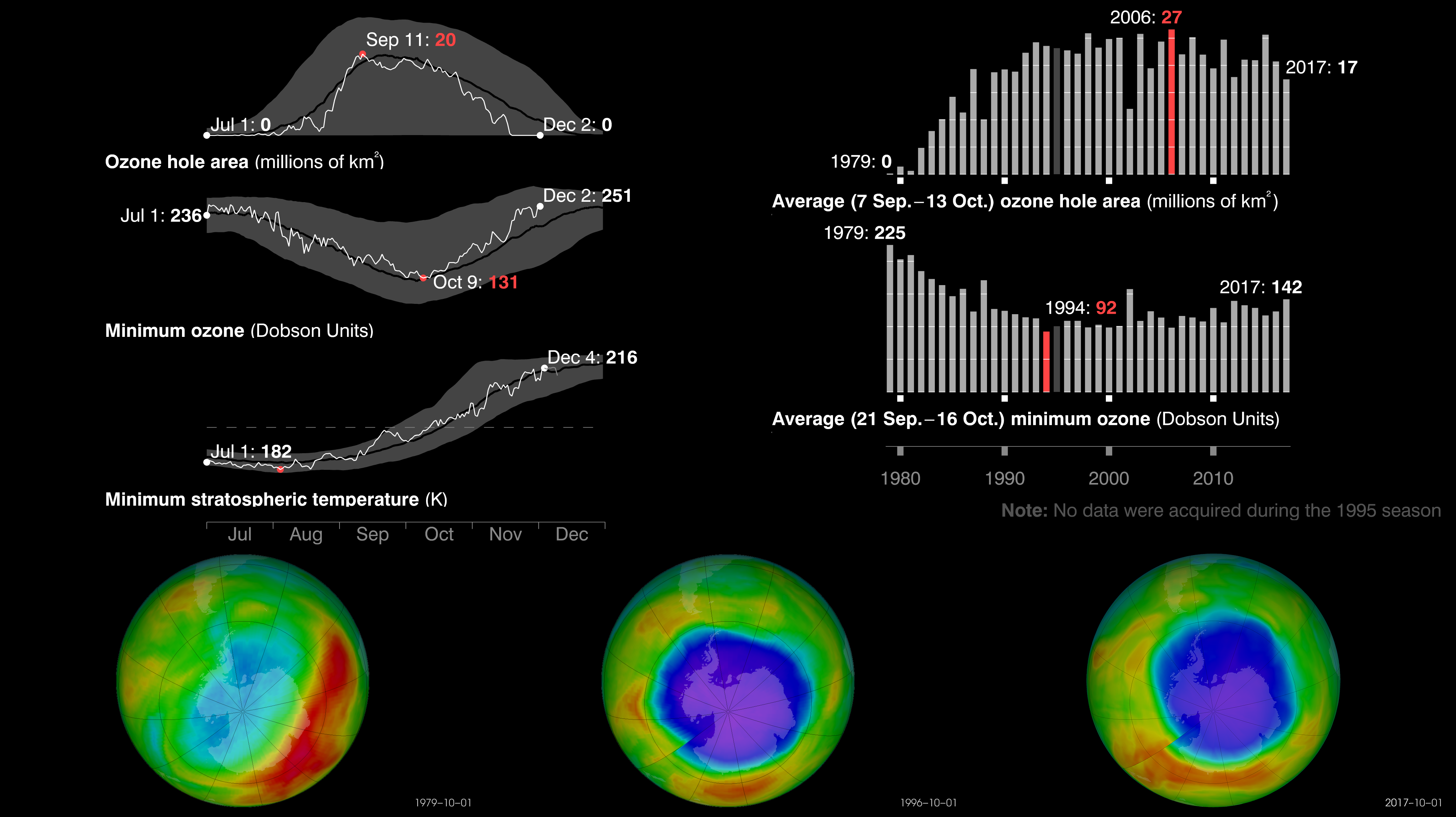

Plots showing the size of the ozone hole.
Each year for the past few decades during the Southern Hemisphere spring, chemical reactions involving chlorine and bromine cause ozone in the southern polar region to be destroyed rapidly and severely. This depleted region is known as the “ozone hole.”
The area of the ozone hole is determined from a map of total column ozone. It is calculated from the area on the Earth that is enclosed by a line with a constant value of 220 Dobson Units (a unit of measure for total ozone.) The value of 220 Dobson Units is chosen since total ozone values of less than 220 Dobson Units were not found in the historic observations over Antarctica prior to 1979. Also, from direct measurements over Antarctica, a column ozone level of less than 220 Dobson Units is a result of the ozone loss from chlorine and bromine compounds.

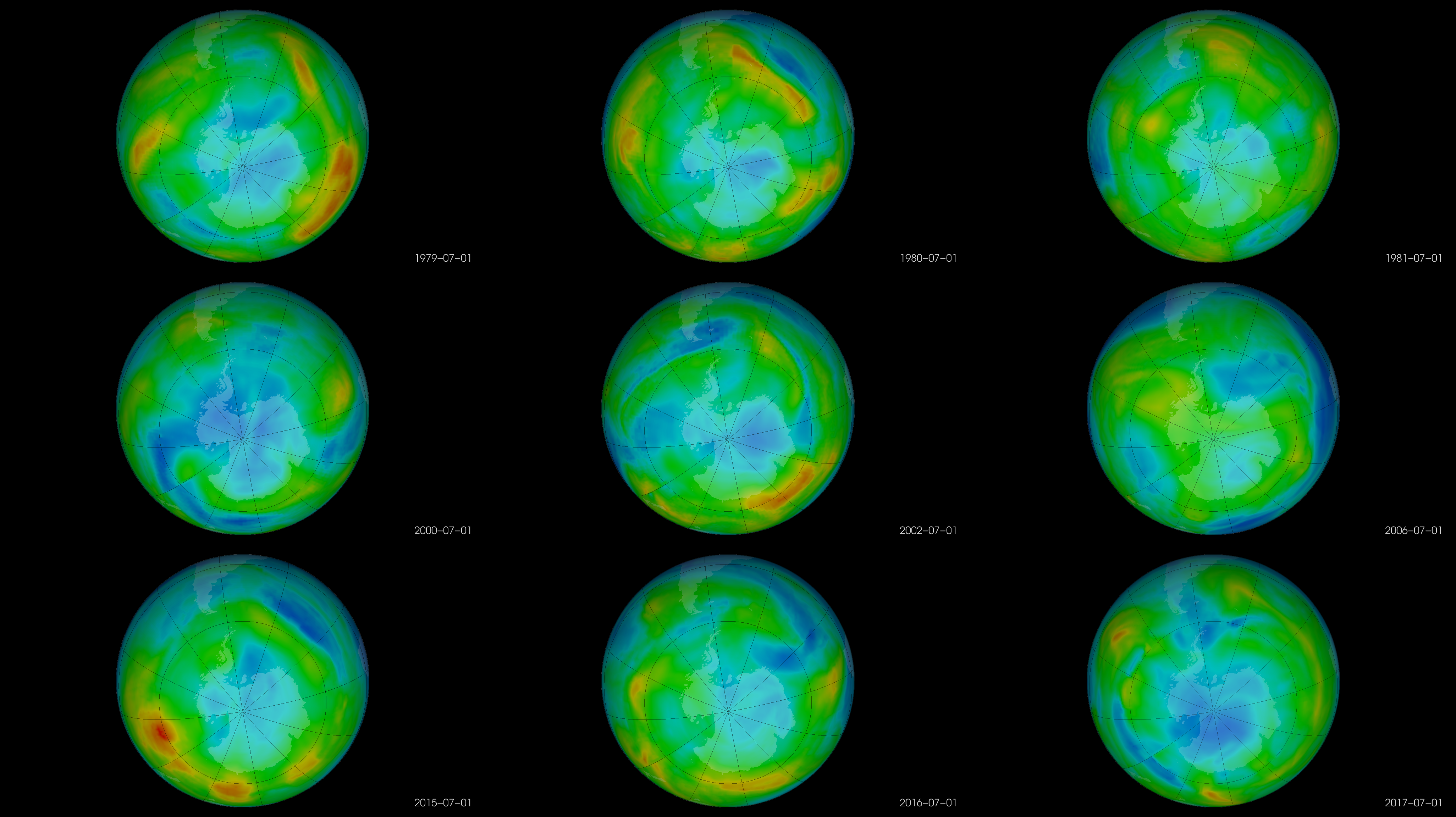

Animation of ozone from July to December of selected years.
Ozone on December 1 of selected years
Antarctic ozone on Oct 1, 2017
Ozone on October 1 of selected years
For More Information
Credits
Please give credit for this item to:
NASA's Goddard Space Flight Center
-
Scientists
- Paul Newman (NASA/GSFC)
- Eric Nash (SSAI)
-
Technical support
Release date
This page was originally published on Sunday, December 31, 2017.
