RHESSI Observes the Flare over AR9906 - Time Tagged

  • Released Wednesday, June 5, 2002
View full credits

Close-up view of the solar active region AR9906 on April 21, 2002 with TRACE and RHESSI data. RHESSI observes x-rays from this flare. The red contours represent the 12-25 keV photon energy range and the blue contours represent 50-100 keV.

Movie of AR9906 flare with RHESSI & TRACE.

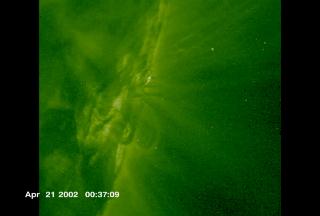

Initial appearance of emission in 12-25 keV.

Initial appearance of emission in 12-25 keV.

Upflow viewed in TRACE appears at the center of the RHESSI emission.

Upflow viewed in TRACE appears at the center of the RHESSI emission.

RHESSI emission expands to an arc, apparently around the limb of the Sun.

RHESSI emission expands to an arc, apparently around the limb of the Sun.

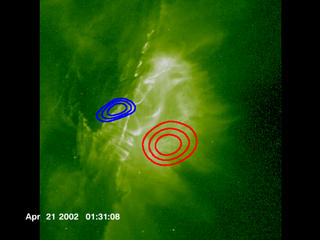

TRACE emission brightens in RHESSI 12-25keV contours and new RHESSI emission at 50-100keV appears on the solar surface.

TRACE emission brightens in RHESSI 12-25keV contours and new RHESSI emission at 50-100keV appears on the solar surface.

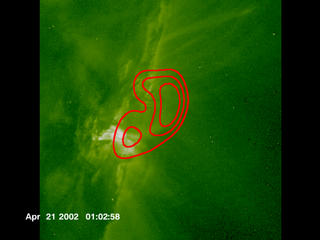

Last gasps of x-ray emission from this flare.

Last gasps of x-ray emission from this flare.

Video slate image reads "RHESSI Observes the Flare over AR9906 (Time Tagged). Close-up view of the solar active region AR9906 on April 21, 2002 with TRACE and RHESSI data. RHESSI observes x-rays from this flare. The red contours represent the 12-25 keV photon energy range and the blue contours represent 50-100 keV.".

Video slate image reads "RHESSI Observes the Flare over AR9906 (Time Tagged). Close-up view of the solar active region AR9906 on April 21, 2002 with TRACE and RHESSI data. RHESSI observes x-rays from this flare. The red contours represent the 12-25 keV photon energy range and the blue contours represent 50-100 keV.".
