Hurricane Bonnie from TRMM and GOES with Cloud Tower: August 22, 1998
These compelling images are from Hurricane Bonnie showing a cumulonimbus storm cloud, towering like a sky scraper, 59,000 feet (18 kilometers) into the sky from the eyewall. Thes images were obtained on Saturday, 22 August 1998, by the world's first spaceboarne rain RADAR aboard the Tropical Rainfall Measuring Mission (TRMM), a joint U.S.-Japanese mission. Launched November 27, 1997, the TRMM spacecraft continues to provide exciting new insight into cloud systems over tropical oceans. By comparison, the highest mountain in the world, Mt. Everest, is 29,000 feet (9 kilometers) and the average commercial jet flies at barely one-half the height of Bonnie's cloud tops. Scientists believe that towering cloud structures like this are probably precursors to hurricane intensification. This was the situation with Bonnie whose central pressure dropped from 977 millibars to 957 millibars in the subsequent 24 hours. TRMM is a joint NASA and NASDA mission that was launched November 27, 1997 from the Japanese Space Center, Tanegashima, Japan.
This animation shows a sequence of GOES images of Hurricane Bonnie, followed by a fly-in to the hurricane showing the three-dimensional structure of the precipitation as measured by the Precipitation Radar instrument on TRMM on August 22, 1998. In this animation, a surface of constant precipitation is colored by the value of the precipitation on the ground under the surface.

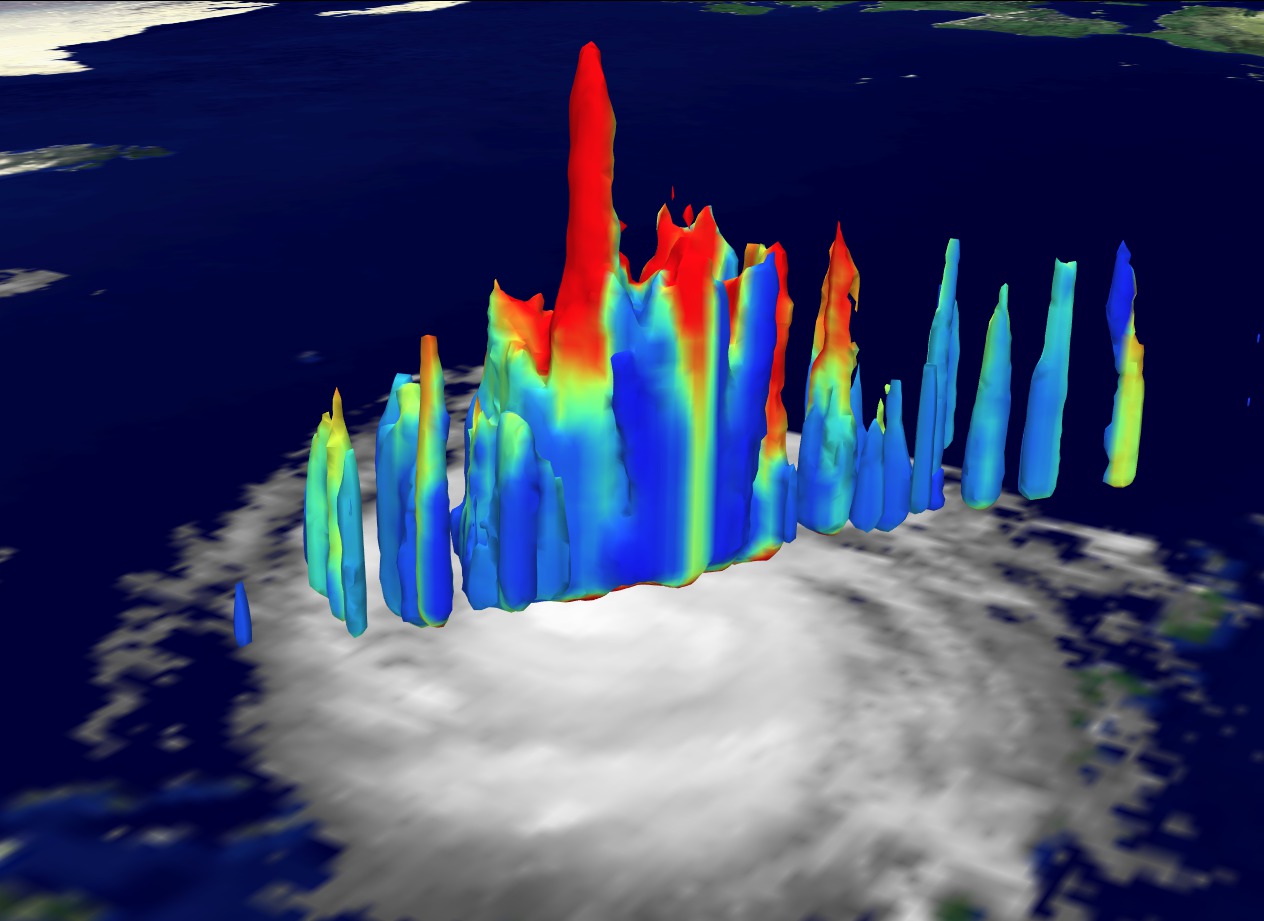

A low angle view of the 18 km Hurricane Bonnie cloud tower
A high angle view of the 18 km Hurricane Bonnie cloud tower
A high angle view of the 18 km Hurricane Bonnie cloud tower, looking through the TRMM optical image of the hurricane
An image with three views of the Hurricane Bonnie tower along with a descriptionof the science result.
Color bar for Hurricane Bonnie Images. blue = 0 mm rainfall-hr, red = 50 mm rainfall-hr
Video slate image reads "TRMM Hurricane Bonnie August 22, 1998 Precipitation Radar Data and Visible and Infrared Scanner (and GOES Satellite Data) (data shows clouds at 18km)".
Please give credit for this item to:
NASA/Goddard Space Flight Center Scientific Visualization Studio
MissionsThis visualization is related to the following missions:
SeriesThis visualization can be found in the following series:
Datasets used in this visualization
TRMMID: 111Collected with VIRS 1998/08/22
TRMMID: 109Collected with PR 1998/08/22
Note: While we identify the data sets used in these visualizations, we do not store any further details, nor the data sets themselves on our site.
