XRISM Spots Iron Fingerprints in Nearby Active Galaxy

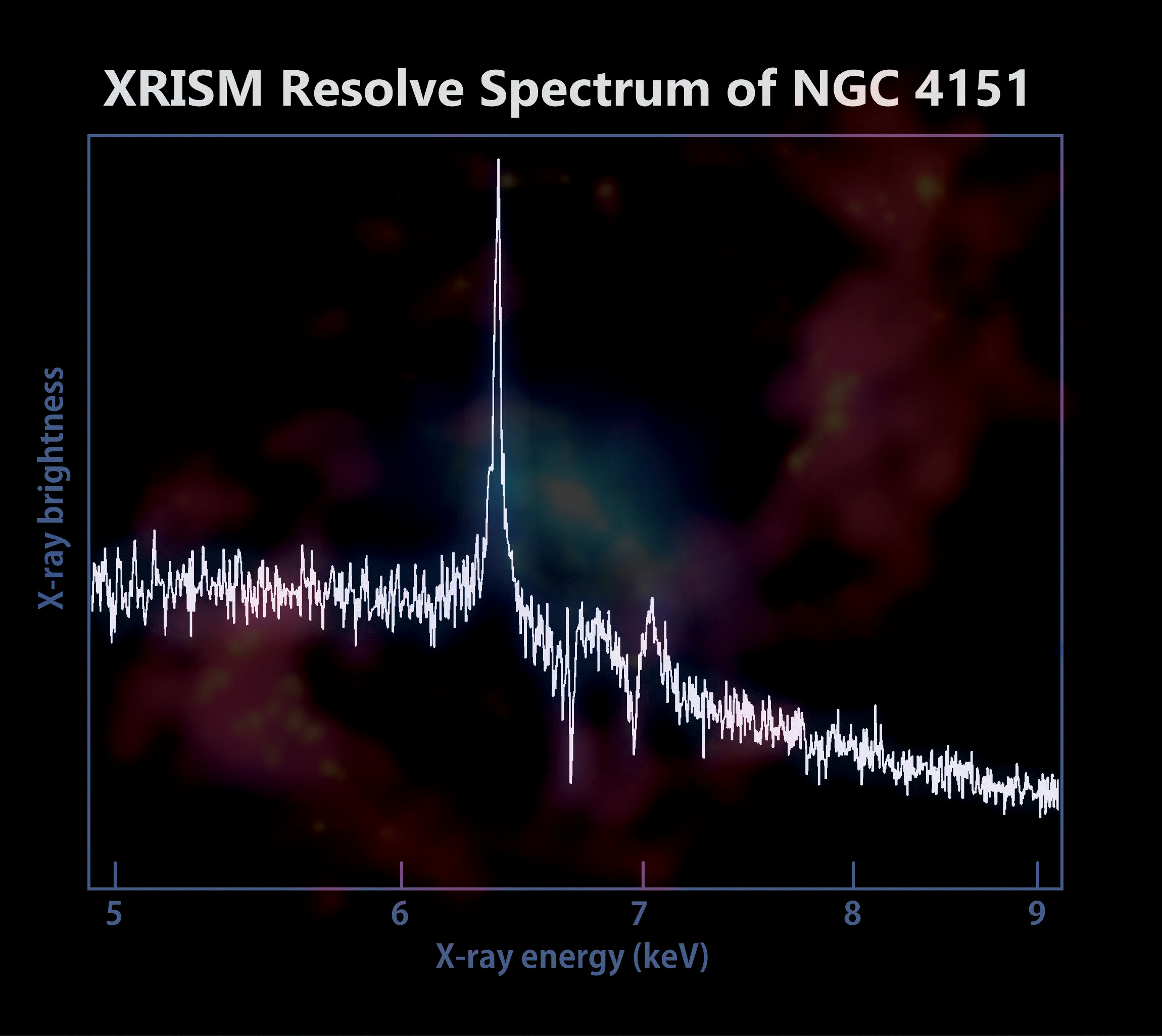

The Resolve instrument aboard XRISM (X-ray Imaging and Spectroscopy Mission) captured data from the center of galaxy NGC 4151, where a supermassive black hole is slowly consuming material from the surrounding accretion disk. The resulting spectrum reveals the presence of iron in the peak around 6.5 keV and the dips around 7 keV, light thousands of times more energetic that what our eyes can see. Background: An image of NGC 4151 constructed from a combination of X-ray, optical, and radio light.

Credit: Spectrum: JAXA/NASA/XRISM Resolve. Background: X-rays, NASA/CXC/CfA/J.Wang et al.; optical, Isaac Newton Group of Telescopes, La Palma/Jacobus Kapteyn Telescope; radio, NSF/NRAO/VLA

Alt text: A XRISM spectrum of NGC 4151 with a multiwavelength snapshot of the galaxy in the background.

Descriptive text: The spectrum image is labeled, “XRISM Resolve Spectrum of NGC 4151.” It shows a graph where the bottom is labeled, “X-ray energy (keV),” with a range from 5 to 9. The left side is labeled, “X-ray brightness.” A squiggly white line starts just under halfway up the left side. It peaks at just under 6.5 keV, nearly reaching the top of the graph. Then it starts to slope gently downward, with several sharp dips around 7 keV. In the background is a dim image of galaxy NGC 4151, where the center is a whiteish blue, surrounding by clouds of red and yellow.

Image of NGC 4151 X-ray spectrum.

Credit: JAXA/NASA/XRISM Resolve

This composite image shows the central region of the spiral galaxy NGC 4151. In the center, X-rays (blue) from the Chandra X-ray Observatory are combined with optical data (yellow) showing positively charged hydrogen from observations with the 1-meter Jacobus Kapteyn Telescope on La Palma in the Canary Islands. The red around the center shows neutral hydrogen detected by radio observations with the National Science Foundation's Very Large Array in New Mexico. This neutral hydrogen is part of a structure near the center of NGC 4151 that has been distorted by gravitational interactions with the rest of the galaxy and includes material falling toward the center of the galaxy. The yellow blobs around the red ellipse are regions where star formation has recently occurred.

Credit: X-rays, NASA/CXC/CfA/J.Wang et al.; optical, Isaac Newton Group of Telescopes, La Palma/Jacobus Kapteyn Telescope; radio, NSF/NRAO/VLA

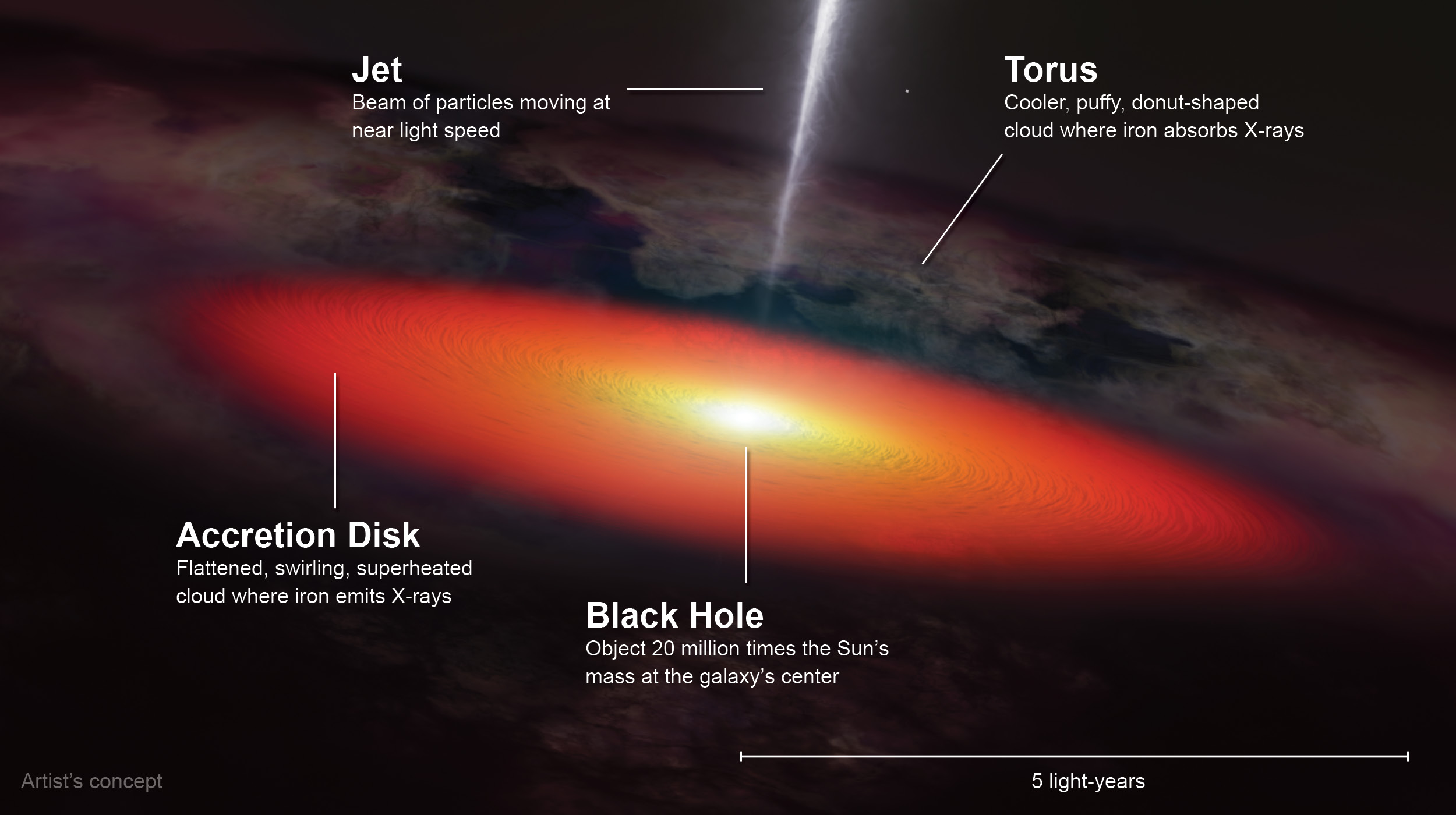

This artist’s concept shows the possible locations of iron revealed in XRISM’s X-ray spectrum of NGC 4151. Scientists think X-ray-emitting iron is in the hot accretion disk, close to the black hole. The X-ray-absorbing iron may be farther away, in a cooler cloud of material called a torus.

Credit: NASA's Goddard Space Flight Center Conceptual Image Lab

Alt text: A labeled diagram showing key components of an active galaxy.

Descriptive text: This image shows the center of an active galaxy. The black hole is hidden within the bright yellow-white region at center. It’s labeled “Black Hole: Object 20 million times the Sun’s mass at the galaxy’s center.” The black hole is surrounded by a yellow and orange structure. It’s labeled, “Accretion Disk: Flattened, swirling, superheated cloud where iron emits X-rays.” This, in turn, is embedded within a circular dark cloud. It’s labeled, “Torus: Cooler, puffy, donut-shaped cloud where iron absorbs X-rays.” A white line extends from just above the black hole to the picture’s top edge. It’s labeled, “Jet: Beam of particles moving at near light speed.” A scale bar stretching from the black hole to the torus reads "5 light-years."

Same as the above, but without labels.

Credit: NASA's Goddard Space Flight Center Conceptual Image Lab
