Winter Arctic Sea Ice Thickness Declining Rapidly

  • Released Thursday, March 5, 2009
View full credits

Using five years of data from NASA's Ice, Cloud and land Elevation Satellite (ICESat), a team of NASA and university scientists made the first basin-wide estimate of the thickness and volume of the Arctic Ocean ice cover between 2003 and 2008. The scientists found that younger, thinner ice has replaced older, thicker ice as the dominant type over the past five years. Until recently, the majority of Arctic ice survived at least one summer and often several. That balance has now flipped. Seasonal ice, or ice that melts and re-freezes every year, now comprises about 70 percent of the Arctic sea ice in wintertime, up from 40 to 50 percent in the 1980s and 1990s. Thicker ice - surviving two or more years - now comprises just 10 percent of ice cover, down from 30 to 40 percent in years past.Sea ice thickness has been hard to measure directly so scientists have typically used estimates of ice age to approximate thickness. With ICESat, NASA scientists were for the first time able to monitor the ice thickness and volume changes over the entire Arctic Ocean. The Arctic ice cap grows each winter as the sun sets for several months and intense cold sets in. The total volume of winter Arctic ice is equal to the volume of fresh water in Lake Superior and Lake Michigan combined. Some of that ice is naturally pushed out of the Arctic by winds, while much of it melts in place.

But not all of the ice in the Arctic melts each summer, and the thicker, older ice that survives one or more summers is more likely to persist through the next summer. This older, thicker ice is declining thinner ice that is more vulnerable to summer melt. Seasonal sea ice usually reaches about 2 meters (6 feet) in thickness, while ice that has lasted through more than one summer averages 3 meters (9 feet), though it can grow much thicker in some locations near the coast. From 2003 to 2008, multi-year ice has thinned by an average of 60 centimeters (2 feet). The total ice volume in winter has decreased by 6,300 cubic kilometers, or 40 percent. The maximum extent of multi-year ice is now one-third of what it was in the 1990s.

Colorbar in meters

Colorbar in meters

Sea ice thickness image from Mar 12 - Apr 14, 2007 - Dark blue shows sea ice that is less then 1 meter and white shows areas greater then 4 meters.

Sea ice thickness image from Mar 12 - Apr 14, 2007 - Dark blue shows sea ice that is less then 1 meter and white shows areas greater then 4 meters.

sea ice thickness image from Feb 22 - Mar 28, 2006 - If compared to the Winter 2005 image many areas previously measured at 3 to 4 meters have shrunk to 1 to 3 meters in thickness.

sea ice thickness image from Feb 22 - Mar 28, 2006 - If compared to the Winter 2005 image many areas previously measured at 3 to 4 meters have shrunk to 1 to 3 meters in thickness.

This sea ice thickness image taken from Feb 17 - Mar 24, 2005 shows a gain in thickness at the North Pole.

This sea ice thickness image taken from Feb 17 - Mar 24, 2005 shows a gain in thickness at the North Pole.

This sea ice thickness image from data taken between Feb 18 - Mar 21, 2004.

This sea ice thickness image from data taken between Feb 18 - Mar 21, 2004.

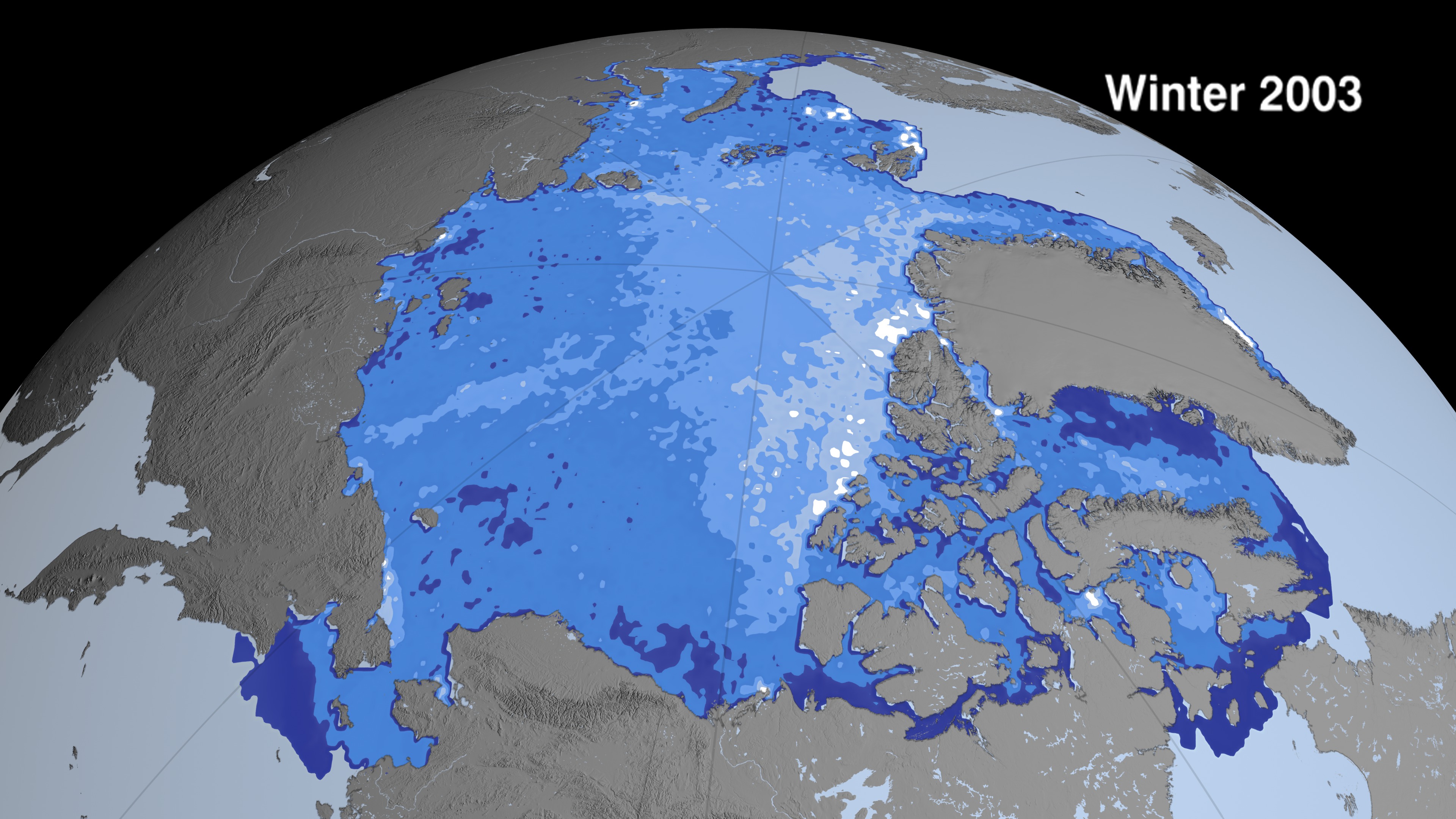

This sea ice thickness image taken from data between Feb 20 - Mar 29, 2003.

This sea ice thickness image taken from data between Feb 20 - Mar 29, 2003.

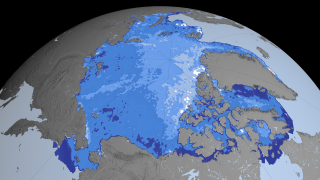

This is the sea ice thicknessimage from data taken between Feb 20 - Mar 29, 2003 without the date label overlay.

This is the sea ice thicknessimage from data taken between Feb 20 - Mar 29, 2003 without the date label overlay.

This sea ice thickness image is from data taken between Feb 18 - Mar 21, 2004 without the date overlay.

This sea ice thickness image is from data taken between Feb 18 - Mar 21, 2004 without the date overlay.

This sea ice thickness image is generated from the data taken between Feb 17 - Mar 24, 2005 without the date overlay.

This sea ice thickness image is generated from the data taken between Feb 17 - Mar 24, 2005 without the date overlay.

This sea ice thickness image is data taken from Mar 12 - Apr 14, 2007 without the date overlay.

This sea ice thickness image is data taken from Mar 12 - Apr 14, 2007 without the date overlay.

This sea ice thickness image is from Feb 17 - Mar 21, 2008 without the date overlay.

This sea ice thickness image is from Feb 17 - Mar 21, 2008 without the date overlay.



Credits

Please give credit for this item to:
NASA/Goddard Space Flight Center Scientific Visualization Studio The Next Generation Blue Marble data is courtesy of Reto Stockli (NASA/GSFC).

Release date

This page was originally published on Thursday, March 5, 2009.
This page was last updated on Wednesday, May 3, 2023 at 1:54 PM EDT.


Missions

This visualization is related to the following missions:

Papers used in this visualization

Zwally, H. J., D. H. Yi, et al. 2008. ICESat Measurements of Sea Ice Freeboard and Estimates of Sea Ice Thickness in the Weddell Sea. Journal of Geophysical Research-Oceans 113(C2). http://adsabs.harvard.edu/abs/2007AGUFM.C11B0421Z
